Descripción

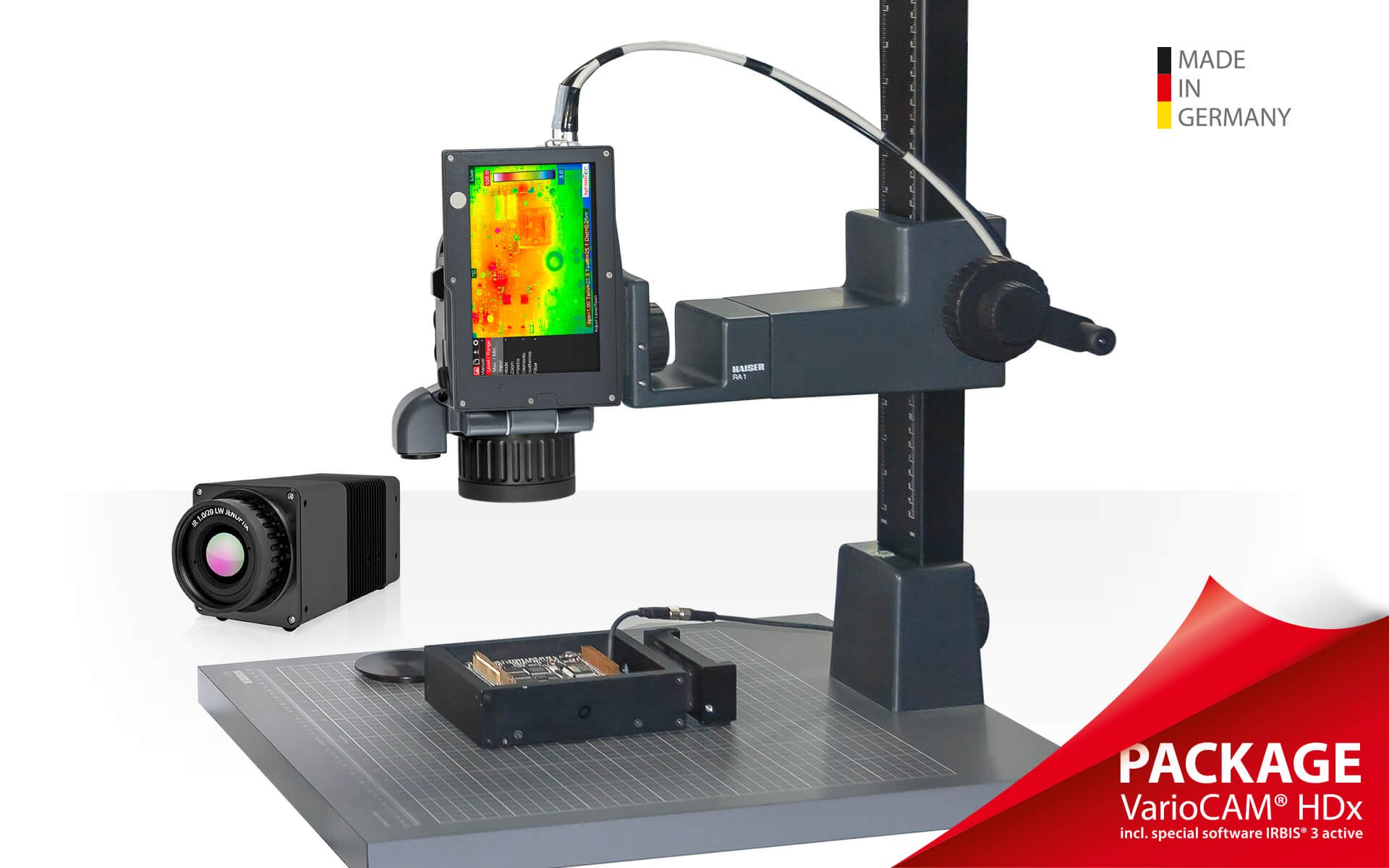

CÁMARA TERMOGRÁFICA
Spectral range (7.5 … 14) μm
Detector Uncooled microbolometer focal-plane array
Detector format (IR pixels) (640 × 480)
Temperature measuring range (-40 … 600) °C, up to 1,700 °C*
Measurement accuracy ± 2 °C or ± 2%
Temperature resolution @ 30 °C Up to 0.03 K*
Frame rate Full-frame: 30 Hz (640 × 480), sub-frame: 60 Hz (384 × 288)
Window mode* Yes
Storage media SDHC Card, external control computer for camera control and data acquisition*
Image storage Time-, trigger- and temperature controlled recording of 16 bit single frames or image sequences with timestamp,
video streaming in MPEG format
