DIGITAL MULTIMETER

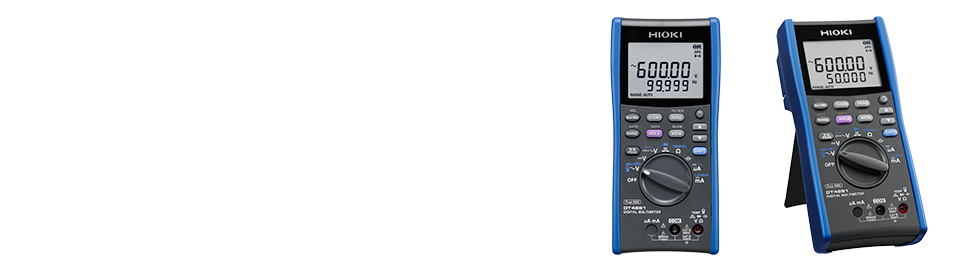

DT4281
-
World’s Premier Digital Multimeter. Superior Accuracy and High Response, Topped with Safety Terminal Shutters
The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters. The DT4281 is our top-of-the-line high-precision 60000 count digital multimeter with all of the functions and features required for advanced testing in complex power and electrical applications. CAT IV 600 V, CAT III 1000 V Key Features • 60000 count, 5-digit display, high-resolution measurements • ±0.025% DC V basic accuracy, wide 20 Hz to 100 kHz AC V frequency characteristics • Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms) • Includes multiple measurement functions such as DC+ACV, temperature, capacitance, and frequency • Terminal shutter mechanism (prevents erroneous test lead insertion) • Measures large currents with optional clamp probe (only for DT4281, which has no 10 A terminal for accident prevention) • Measure up to 10A with direct input (DT4282 only) • Dual display lets you check voltage and frequency simultaneously • Magnetic strap (Optional) • Rear kickstand • Store probes at the back of the tester • Identify excessively high input with a red screen backlight • Robust design capable of withstanding a drop from a height of 1 m • USB communications function supports PC measurements (optional) • Broad -15 (5°F) to 55°C (131°F) operating temperature range
Basic specifications (Accuracy guaranteed for 1 year, Post-adjustment accuracy guaranteed for 1 year)Regarding DMM Accuracy Due to the many ranges and functions available in a DMM, only the basic accuracy is indicated for reference. Please refer to the individual catalogs for detailed accuracy information. * Zero-suppression: For small inputs below the guarantee range, zero is effectively displayed.
DC Voltage range 60.000 mV to 1000.0 V, 6 ranges, Basic accuracy: ±0.025 % rdg. ±2 dgt. AC Voltage* range 60.000 mV to 1000.0 V, 6 ranges, Frequency characteristics: 20 Hz – 100 kHz
Basic accuracy 45 – 65 Hz : ±0.2 % rdg. ±25 dgt. (True RMS, crest factor 3)DC + AC Voltage* range 6.0000 V to 1000.0 V, 4 ranges, Frequency characteristics: 20 Hz – 100 kHz
Basic accuracy 45 – 65 Hz : ±0.3 % rdg. ±30 dgt. (True RMS, crest factor 3)Resistance range 60.000 Ω to 600.0 MΩ, 8 ranges, Basic accuracy: ±0.03 % rdg. ±2 dgt. DC Current range 600.00 μA to 600.00 mA, 4 ranges
Basic accuracy: ±0.05 % rdg. ±5 dgt.AC Current* range 600.00 μA to 600.00 mA, 4 ranges
Basic accuracy 45 – 65 Hz : ±0.6 % rdg. ±5 dgt. (True RMS, crest factor 3)
Frequency characteristics: 20 Hz – 20 kHz (at 600 μA to 600 mA range)AC Current* range (use with Clamp on probes) 10.00 A to 1000 A, 7 ranges
Add the Clamp on probe accuracy to Basic accuracy 40 – 65 Hz : ±0.6 % rdg. ±2 dgt. (True RMS, crest factor 3)Peak DC V measurement: Signal width 4 msec or more (single), 1 msec or more (repeated)
AC V, DC/AC A measurement:
Signal width 1 msec or more (single), 250 μsec or more (repeated)Capacitance range 1.000 nF to 100.0 mF, 9 ranges, Basic accuracy: ±1.0 % rdg. ±5 dgt. Continuity Check Continuity threshold: 20/50/100/500 Ω, Response time: 10 ms or more Diode test Open terminal voltage: 4.5 V or less, Testing current 1.2 mA or less, Threshold of forward voltage: 0.15 V to 3 V, seven stages Frequency range AC V, DC+AC V, AC A measurement, at pulse width 1 μs or more (50 % duty ratio)
99.999 Hz (0.5 Hz or more) to 500.00 kHz, 5 ranges, ±0.005 % rdg. ±3 dgt.dB conversion Standard impedance setting (dBm), 4 Ω to 1200 Ω, 20 stages
Display dB conversion value of AC voltage (dBV)Temperature (thermocouples) K: -40.0 °C to 800.0 °C (-40.0 °F to 1472.0 °F)

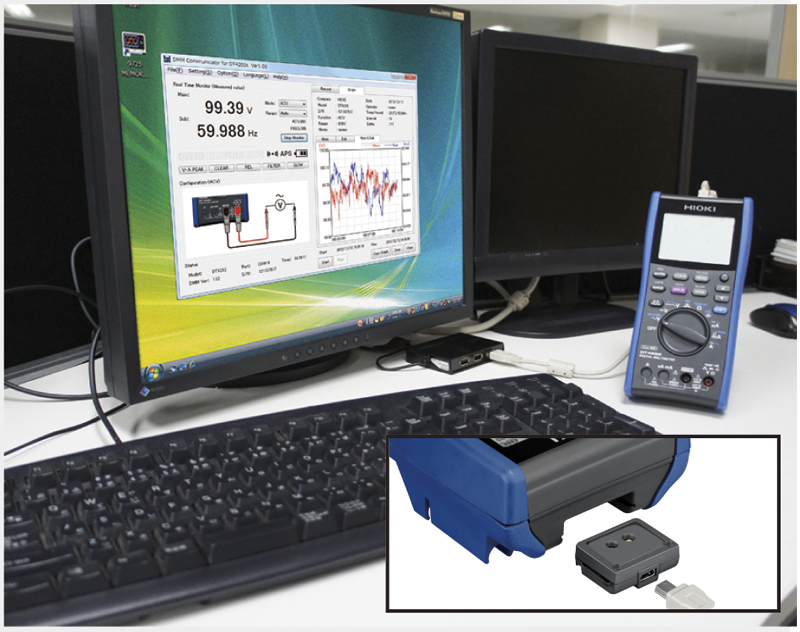

Add accuracy of the Thermocouple probe to main unit accuracy: ±0.5 % rdg. ±3 °COther functions Filter function (Remove harmonic noise, use only at 600 VAC, 1000 VAC ranges), Display value hold, Auto hold, Max/Min value display, Sampling select, Relative display, Measurement memory (400 data), Auto-power save, USB communication (option), 4-20 mA % conversion Display Main and sub displays: 5-digits LCD, max. 60000 digits Display refresh rates 5 times/s (Capacitance measurement: 0.05 to 2 times/s, depending on measured value, Temperature: 1 time/s ) Power supply LR6 (AA) alkaline batteries × 4, Continuous use: 100 hours Dimensions and mass 93 mm (3.66 in) W × 197 mm (7.76 in) H× 53 mm (2.09 in) D, 650 g (22.9 oz) (with test leads holder and batteries) Accessories Test Lead L9207-10 × 1, Instruction Manual × 1, LR6 Alkaline Battery × 4
