Descripción
Sistemas De Propulsión Eléctrica De Bellmarine
Máquina eléctrica
Motores de imanes permanentes certificados por DNV con reductor mecánico de aluminio, con diferentes relaciones disponibles para cada necesidad operativa. Facilidad de acoplamiento a numerosos tipos de hélices; disponible con refrigeración por aire o líquido. Solución compacta y también disponible en versión “U drive”. diseñado para emparejarse con cualquier hélice. Potencia disponible desde 20kW hasta 130kW.

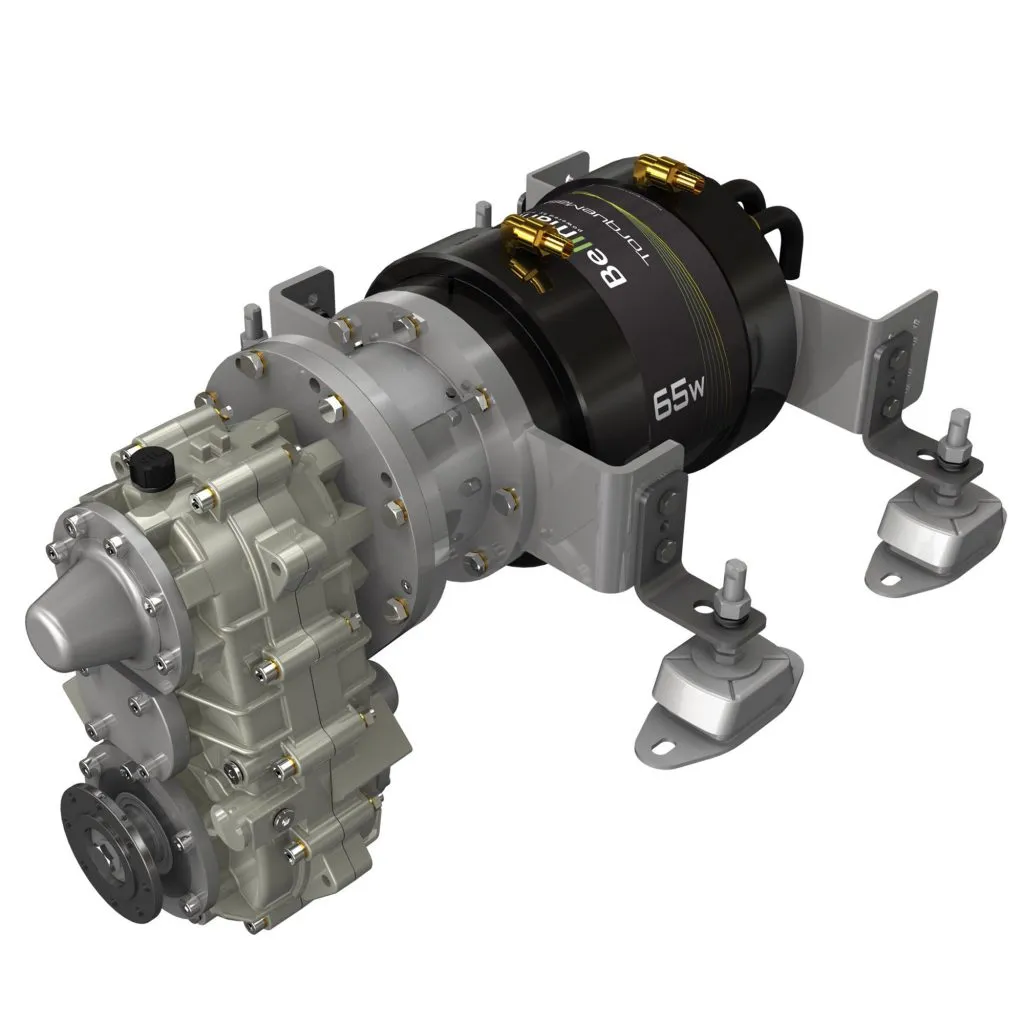

TorqueMaster
Including:
• Motor with mounting brackets and silent blocks
• Drop Box with integrated thrust bearing – 225 mm offset
• Vector control inverter IP65
• Main switch and main fuse
• DC-DC converter 12 Vdc
• 1,5m cable for display, lever, key
• Quick install / easy connect / plug and play
• Dropbox aluminum made – no cooling needed – low noise and low vibration
• Oil temperature sensor
• Elastic coupling between motor and Dropbox
• DIN120 output (SAE 1410 upon request) – “U” drive possible
Optional:
• NMEA2000 compatible (upon request)
• Regeneration kit
“U Drive”
Including:
• As above
• Inlet and outlet liquid connections
• For 288/384V systems – Throttle lever TFC
Permanent magnet motors with a mechanical reducer in various gear ratios;
available with air or liquid cooling. A compact solution designed to couple to any propeller.
Air Cooled
reduction ratio i= 1.59 – 2.01 – 2.41 – 2.87 – 3.35 – 3.97 – 5.01
Propeller rpm = motor rpm/i
